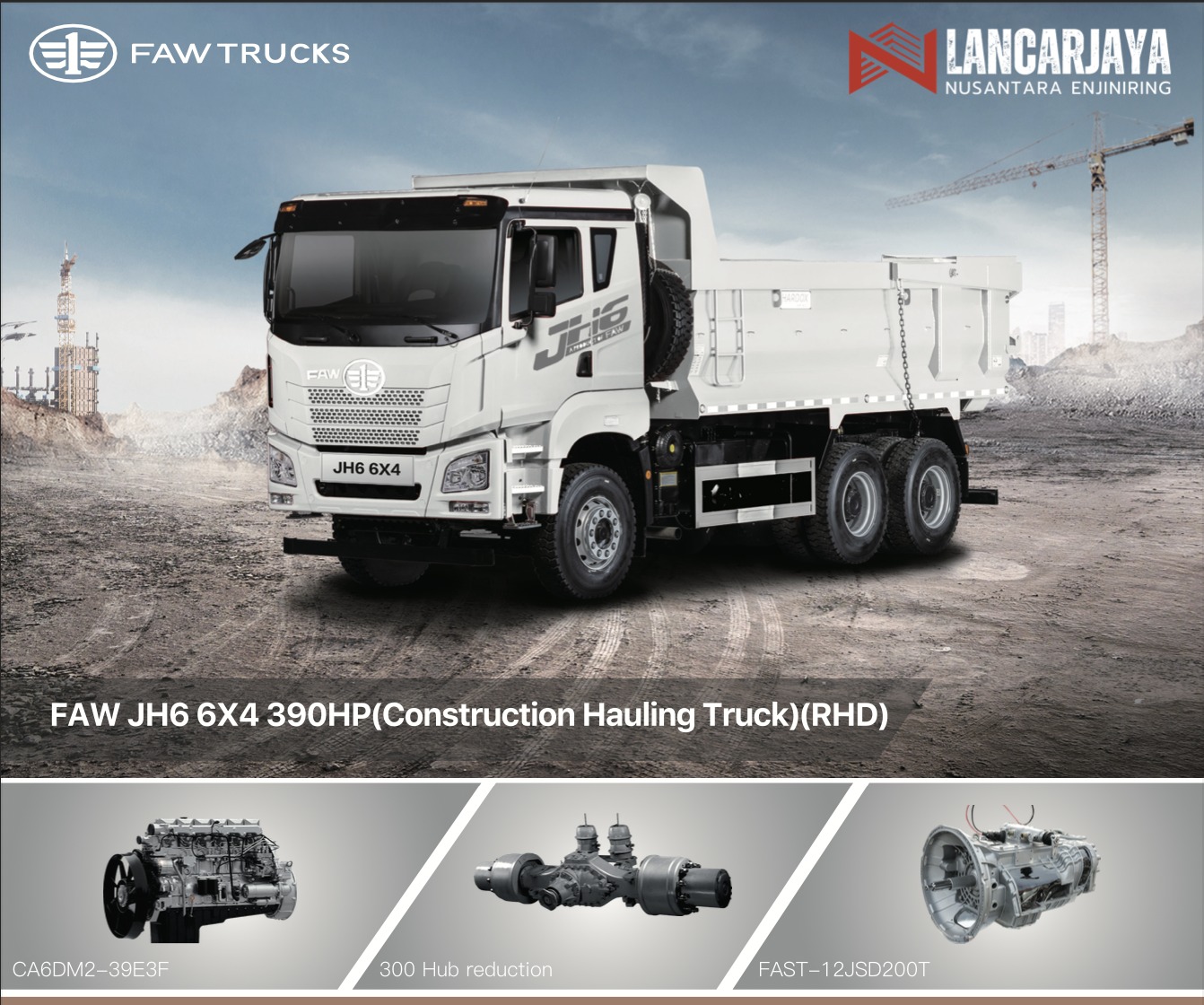

FAW JH6 6X4 390HP


Construction Hauling Truck (RHD)

The FAW JH6 6x4 390HP is a robust construction hauling truck designed for heavy-duty operations. It features a right-hand drive (RHD) configuration, making it suitable for regions with left-side driving. Powered by a 390 horsepower engine, this truck is built for reliability and efficiency in tough construction environments. The 6x4 drivetrain provides excellent traction and stability, ideal for hauling large loads over rough terrains. With its durable construction and advanced features, the FAW JH6 is a dependable choice for demanding construction tasks.

Description

  JH6 6X4 390HP Construction Hauling Truck Core Advantages
  • 1) 11 liter All-win engine, as well as the equivalent technology from Europe. The four-valve engine is designed with sufficient intake and thorough exhaust.
  • 2) 700 L high-strength steel plate frame. Unique rolling processed frame, lightweight, high strength, and bending resistance.
  • 3) The patented dual I-bar V-shaped arrangement with low center of gravity.
  • 4) Maintenance-free balanced suspension shaft and 4U bolt fastening.
  • 5) The first all-steel cab in China to pass the highest collision regulation standard in Europe (Regulation ECER29).
  • 6) The convex sunshade is able to block more light.
  • 7) The exhaust pipe blows upward/Oil type Air Filter.

Technical Specifications

Main Spesification:

Model:

CA3251P27K2T1YA80

Type:

6X4 Dumper, Euro 2

MASS:

Max GVW (kg):

50000

Curb Weight of Chassis (Kg):

10600 (Without Upbody)

Max. Loading Capacity (Kg):

39400 (without Upbody)

DIMENSIONS:

Length*Width*Height (mm):

8045*2550*3325 (without Upbody)

Wheel Base (mm):

4300+1350

Wheel Track Front /Rear (mm):

2055/1878

Overhang Front /Rear (mm):

1495/900

PERFORMANCE:

Max. Speed (Km/h):

65

Max. Grade Ability (%):

35

Approach/Departure Angle (°):

17/40

Min. Ground Clearance (mm):

314

Min. Steering Radius (m):

17

CAB:

Model CAB:

JH6, RHD

Category:

Hill floor/Flat roof/Single sleeper

ENGINE:

Model Engine:

FAW CA6DM2-39

Type Engine:

6 in-line/ Water-cooling/ Inter-cooling, Mechanical pump

Displacement (L):

11.04

Max Output Power (Kw/rpm):

290/1900

Max Torque (Nm/(r/min)):

1750/1200-1400

Horsepower (Ps):

390

Emission Level:

Euro 2

CLUTCH:

Driven Plate Dia:

Eaton 430

Clutch Type:

Dry type diapharagm clutch

STEERING

Steering Type

17Mpa

Ratio

26.2

TRANSMISSION

Transmission Model

FAST 12JSD200T

Transmission Type

12+2 gear, 2000Nm

Forward Gear Ratio

i1=15.53; i2=12.08; i3=9.39; i4=7.33; i5=5.73; i6=4.46; i7=3.48; i8=2.71; i9=2.11; i10=1.64; i11=1.28; i12=1.00

Reverse Gear Ratio

iRH=3.33; iRL=14.86

AXLE

Front

2055 model, 9000kg

Rear

300 hub reduction, 16000kg

Reduction Ratio

5.921

FRAME

Main Rail Section (mm)

30080(8+8)

SUSPENSION

Suspension Type

Double I-bar, 4U leaf spring bolts

Leaf Spring

Leaf spring, front 11 / rear 13

WHEEL

Tire Model

12.00R20-18PR

Tire Rim

8.5-20

Brand

TRIANGLE-TR691E

BRAKE

Driving Brake

Dual circuit air braking system

Parking Brake

Spring cylinder storage

Auxiliary Brake

Engine brake

Upbody (mm)

Dimenssion Upbody

6000*2400*1800mm - Rectangle(26m³)

Material

Q355-Mn

Thickness

Bottom: 8mm; Side: 6mm

Oli Cylinder

Chinese Brand

Cylinder Diameter

179mm

Lifting Body

Front lifting
